Granular Carbon Packing Machine

Share

Xingyuan  Carbon Crushing & Packing System

---Activated carbon crushing machine
---Stone sperator & Dust collection system

---Screening System
---Packing System With Auto Weight

Wood Carbonizing Furnace


  • Product Description
  • Product Model

Xingyuan  Carbon Crushing & Packing System

---Activated carbon crushing machine
---Stone sperator & Dust collection system

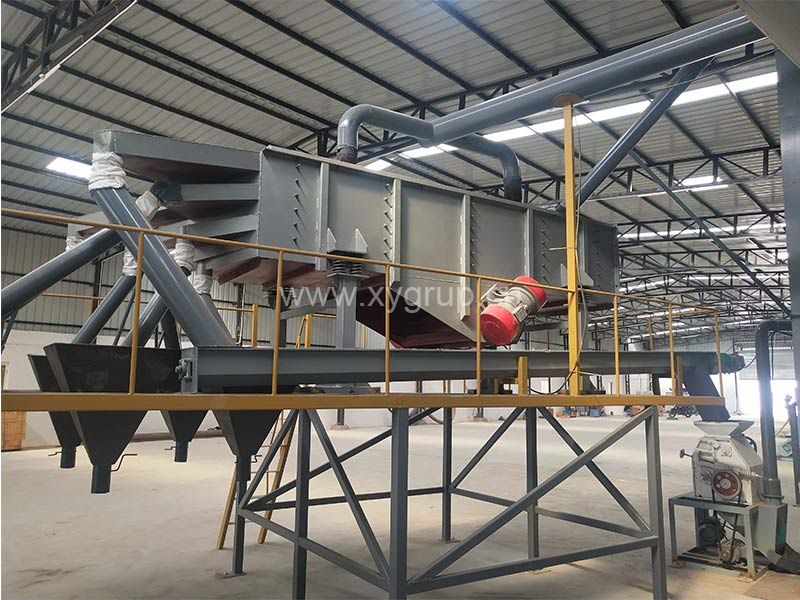

---Screening System
---Packing System With Auto Weight


Activated Carbon Crushing Machine


---Xingyuan Biomass Equipment Brand---

Wood Carbonizing Furnace


ACTIVATED CARBON SIZE

The size of activated carbon is logically dependent on the shape or physical form of the matter and can be expressed in several measures.


SIZE RANGE OF GRANULAR ACTIVATED CARBON (GAC)

Activated Carbon Crushing Machine

The size range of granular activated carbon (GAC) is usually expressed as the sieve sizes, expressed in mm or US Mesh, between which most of the GAC is retained. It is measured by shaking a sample of granular activated carbon through a defined series of sieves. In metric units it is the width between the sieves wires expressed in mm. In the US Mesh system the sieve size number refers to the openings between the sieves wires per inch.

For example; a 8x30 US Mesh activated carbon means at least 93% of the granules by weight are larger than 30 Mesh (0.60mm) and at least 90% of the granules by weight are smaller than 8 Mesh (2.36mm). 12x40 US Mesh (0.42 to 1.70mm), 6x16 US Mesh (1.18 to 3.35 mm).


Sieve N°(ASTM E11-87)Sieve size mm
44.75
63.35
72.80
82.36
102.00
121.70
141.40
161.18
181.00
200.85
250.71
300.60
350.50
400.42
450.35
500.30
600.25
700.21
800.18
1000.15
1200.12
1700.090
2000.075
3250.045


EFFECTIVE SIZE (ES)

The effective size of granular activated carbon is calculated as the size, expressed in mm, for which 10% by weight of granules are smaller. It is an indicator for the pressure drop and filtration performance of backwashed and segregate carbon beds. A lower effective size will have a higher pressure drop and will filter smaller particles which can result in a higher backwash frequency compared to carbons with a higher effective size.



UNDERSIZE (US)

The undersize is the amount of activated carbon, expressed in % weight, which is smaller than the finest sieve. (eg % weight smaller than 0.60mm for a 0.60-2.36mm carbon). This quality parameter is often used to determine the potential losses during reactivation.


UNIFORMITY COEFFICIENT (UC)

The uniformity coefficient of granular activated carbon is calculated as the ratio of the size, expressed in mm, for 60% by weight of granules are smaller divided by the effective size. The smaller the uniformity coefficient, the more uniform the particles of the product are. A uniformity coefficient of 1 indicates all the granules have the same size. Granular activated carbons with a low uniformity coefficient are often used when installed in the first step filtration in drinking water production.


Activated carbon crushing treatment

Activated Carbon Crushing Machine


Activated carbon comes from many sources such as coconut shells, coal (coke), and wood; all of which can be grinding with Xingyuan activated carbon crushing equipment on an industrial scale.

Grinding activated carbon into more uniform particle sizes increases production yields and lowers costs. Xingyuan activated carbon crushing machine achieve better particle uniformity than traditional roller and hammer mill grinders because Xingyuan activated carbon grinder have corrugated rolls that cut and shear particles down to size. Xingyuan can work with you to build the perfect industrial carbon grinder for your business.

Xingyuan activated carbon crusher specification

Equipment listSpecificationUnitQty
AC stock silo
2CBMpc1
bucket elevator5meter height0.75KWset1
Crusherdaily capacity 5tons for 10-12 hour 2.2KW*2,double motordouble roller typeset1
stone separator
0.25KW*2
1
shaking screen1*3.5meter size ,daily
capacity 5tons for 10 hour
motor
3KW(1.5*2)
set1
meshing screen pieceS.S screen *6layerset1
De-dust
system
air compresser 7.5KW
set1
cyclone dust collect
output device
Pulse dust collectorblower 4KW 78bgs
output device
Draft fan & Motor7.5KW motor
connection pipes and Flange
bucket elevator5meter height0.75KWset1
screw feeding5meter length
set1
working platformStructure steel and iron steels40sqm ,2m heightton2.5
Ton bag loading frameStructure steel and iron steelswelding in project placepcs6
Other connection pipe and steel

set1
Distribution
cabinet
rate-control meter
pc2
electromagnetic starter
pc4
Air switch
pc1
Spare partsCrushing double roller
set1
Soft connection part
set1
Bucket elevator bucket
set1
Daily capacity 5MT/12hours

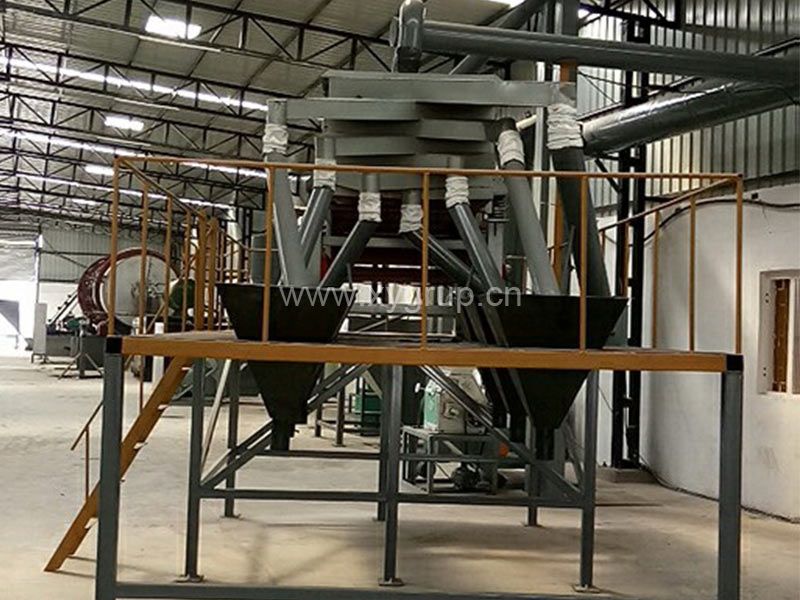

Xingyuan Activated Carbon Crushing Machine system

Activated Carbon Crushing Machine

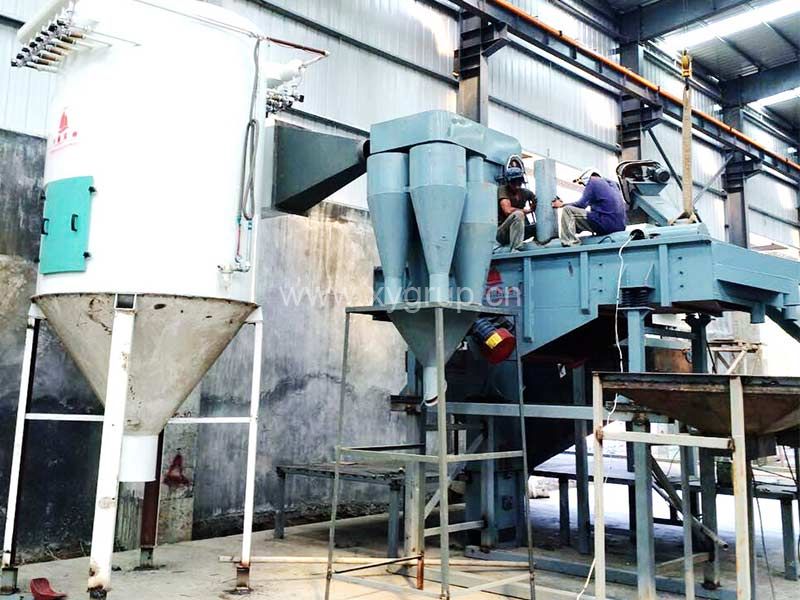

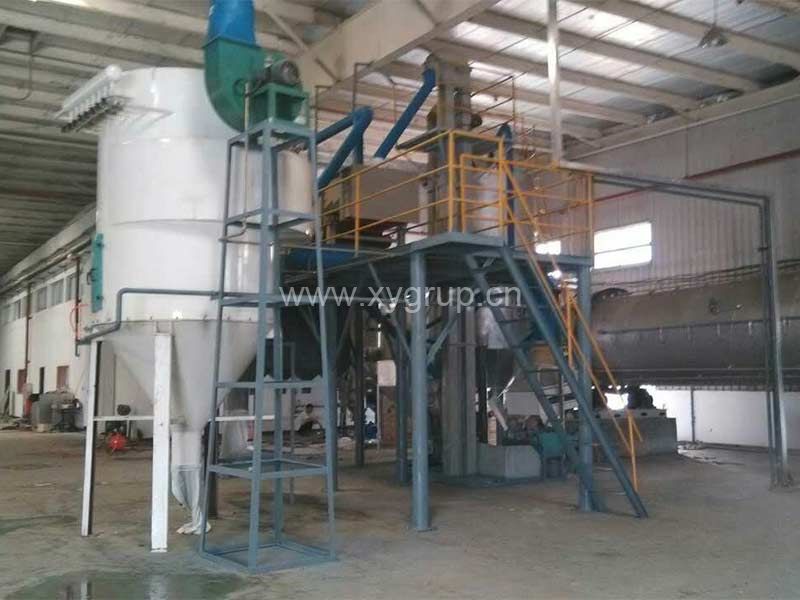

Xingyuan Activated Carbon Crusher system

Activated Carbon Crushing Machine

Xingyuan with about 30years experience,the activated carbon grinding system with advantage auto recycle and low loose rate.
