Full Auto Carbon Powdering And Packing System

Share

Xingyuan Auto Activated Carbon Powder Making and Packing System

---Activated carbon Milling machine
---Powder mixing and transit system

---Auto Packing
---Auto packing system

Wood Carbonizing Furnace

  • Product Description

Xingyuan Auto Activated Carbon Powder Making and Packing System

---Activated carbon Milling machine
---Powder mixing and transit system

---Auto Packing
---Auto packing system




---Xingyuan Biomass Equipment Brand---

Wood Carbonizing Furnace


Powder AC Application And Size:

From the activated carbon different application, Xingyuan separate the activated carbon into:

· Water treatment

· Air & Gas treatment

· Chemicals & Pharmaceutical

· Food & Beverages

· Gold Recovery

· Soil Remediation

· Cosmetics


GradeStandard particle size (mesh)CharacteristicsTypical application
For water purification100 or less1: Wood-based powdered activated carbon,
which has the characteristics of activated
carbon according to application
A: Removal of musty smells, humic substances, COD
compounds, THM, and synthetic detergents in tap
water
B: COD removal and decolorization of waste water
For general decolorization purification100 or less
1: Coconut shell powdered activated carbon,
which has the characteristics of activated
carbon according to application
A: Decolorization and purification in food industry
B: Decolorization and purification of chemicals and
intermediates for industrial use
C: Decolorization of solvents for cleaning
For dioxin removal100 or less
1: Selected carbonaceous material is used and
manufactured by the steam activation method,
so it is good for safe ignition.
A: Removal of dioxin



Activated carbon powder making system



Xingyuan activated carbon powder milling specification

Feeding system
5meter hight bucket elevator
0.75KWset1
Silo tank

Screw feeding

Remond millpowder   making ,spare milling dish one set
daily 4tons   capacity
De-dust
system

air compresser 7.5KW
cyclone dust collect
output device
Pulse dust collector
output device
Draft fan & Motor
connection pipes and Flange
working platform
Structure   steel and iron steels
Distribution
    cabinet
rate-control   meter
electromagnetic starter
Air switch
Spare parts
Milling dish
set1

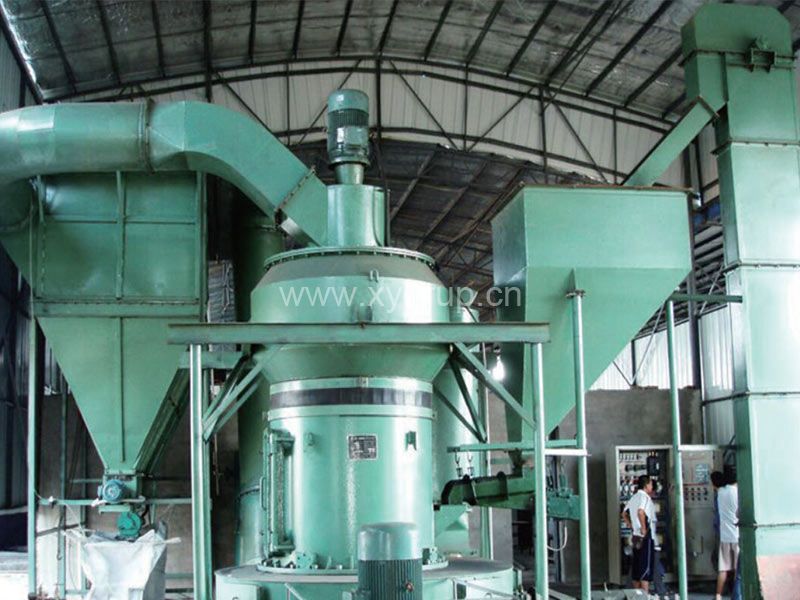

Xingyuan Activated Carbon Powder Making Machine

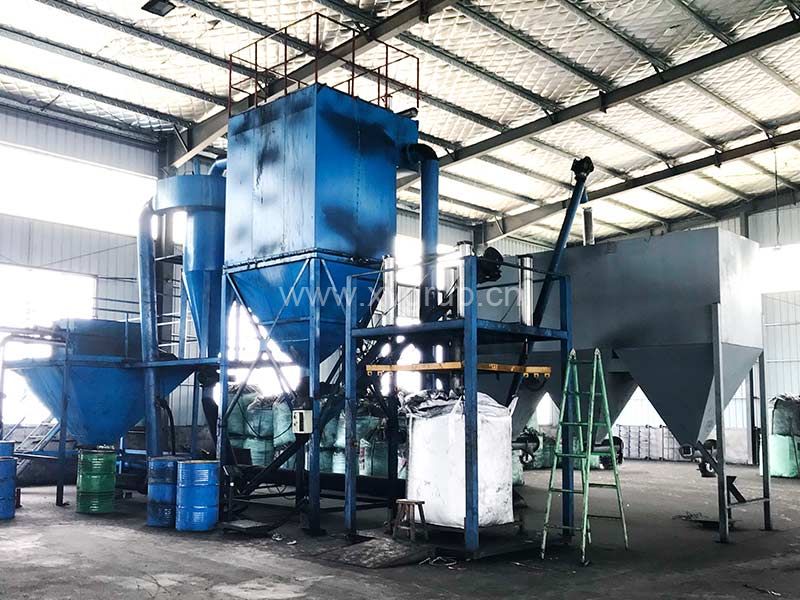

Xingyuan Activated Carbon Powder Packinging system




Xingyuan with about 30years experience,the activated carbon grinding system with advantage auto recycle and low loose rate.


Contact us for more information:

Please contact with us and let us know your simple information and request for our products, we will feedback as soon as possible.
