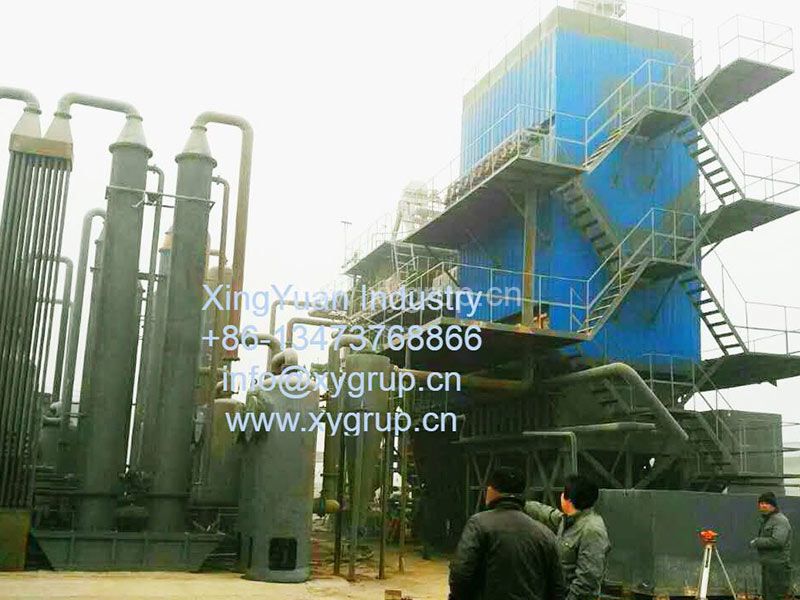

Biomass Gasifier Plant Xingyuan

Share

Xingyuan Multi-function & production Gasification System

G---gas, syngas for electricity

C---charcoal, wood charcoal or shell charcoal.

E---electricity from 200-nM KW, as design

L---- liquid , wood tar oil and wood vinegar .

Wood Carbonizing Furnace

  • Product Description
  • Main Features
  • Product Model
  • Application

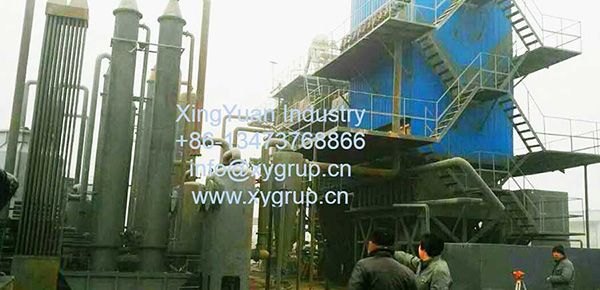

--Xingyuan New Technology Biomass Carbonizer & Gasifier Systems

  Biomass Gasifier


---Xingyuan Biomass Equipment Brand---

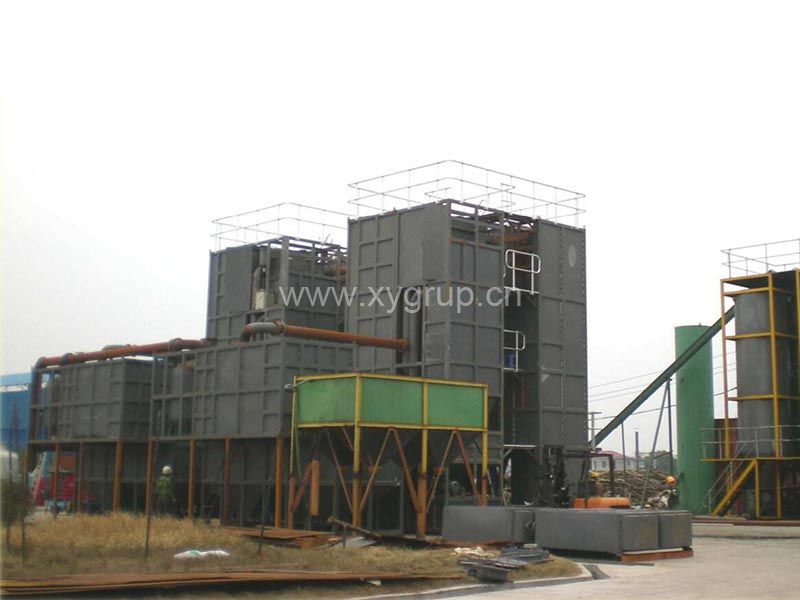

Wood Carbonizing Furnace


---Xingyuan Biomass Technology

Biomass Gasifier

Biomass Gasifier

Biomass Gasifier


Raw Material Brief Introduction

A: Rice huskB: Sawdust or blockC: Peach kernelD: Coconut shell
Biomass GasifierBiomass GasifierBiomass GasifierBiomass Gasifier
E: Palm shell  F: Wall nut shellG: Jujube kernelH: Haw seed
Biomass GasifierBiomass GasifierBiomass GasifierBiomass Gasifier
I: Almond kernelJ: Olive kernelK:Hazelnut shellL:Other biomass thing
Biomass GasifierBiomass GasifierBiomass GasifierBiomass Gasifier



      Forest biomass (including rice husk, fruit shells, trees’ mess, wood based and bamboo based waste mess) and other agriculture waste things. These Forest and farm biomass things with advantages widely distribution source, regeneration, less Sulfur and Nitrogen content, it’s a good green and sustainable source all of the world.

Biomass Gasifier

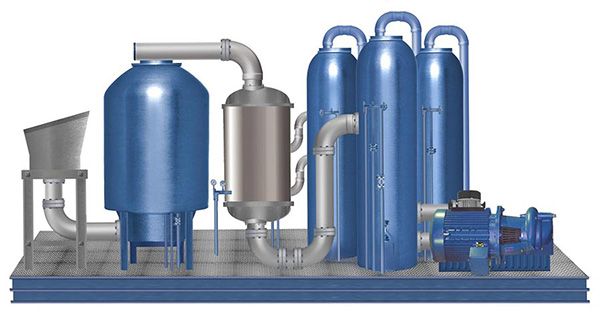

BIOMASS GASIFIER FOR THERMAL AND POWER APPLICATIONS


Biomass gasification is a process of converting solid biomass fuel into a gaseous combustible gas (called producer gas) through a sequence of thermo-chemical reactions. The gas is a low-heating value fuel, with a calorific value between 1000- 1200 kcal/Nm3 (kilo calorie per normal cubic metre). Almost 2.5-3.0 Nm3 of gas can be obtained through gasification of about 1 kg of air-dried biomass. Since the 1980's the research in biomass gasification has significantly increased in developing countries, as they aim to achieve energy security.

Xingyuan independently began research work in gasifier technology in the mid-2010. Since, the gasifier technology has been customized for a range of direct-heat application and tested successfully in the field. Silk processing, large-cardamom drying and gasifier-based crematoria are a few examples of the applications worked on at TERI. This technology is slowly replacing both traditional biomass use and gas-powered systems, as it provides an excellent de-centralized source of energy at an affordable cost. Apart from rural households, biomass fuels are the main source of energy to a large number of small, rural and cottage industries.

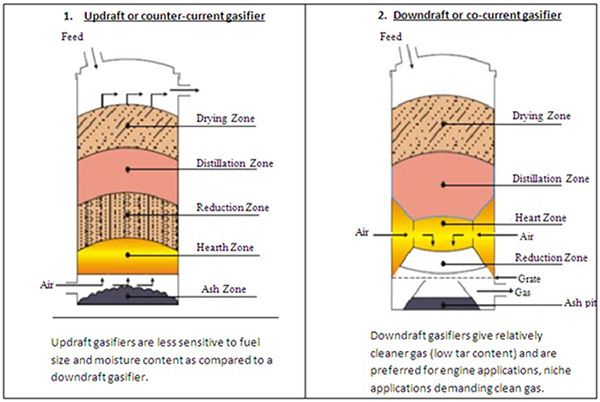

There are 2 main types of traditional biomass gasifiers

Biomass Gasifier


Biomass Gasifier

Features of Xingyuan's biomass carbonizer gasifier

Xingyuan is focus on the updraft gasification system, but not only limited by the traditional design.

Except the traditional gasification products electricity, Xingyuan combine the carbonizing technology, realized multi production gasification system.

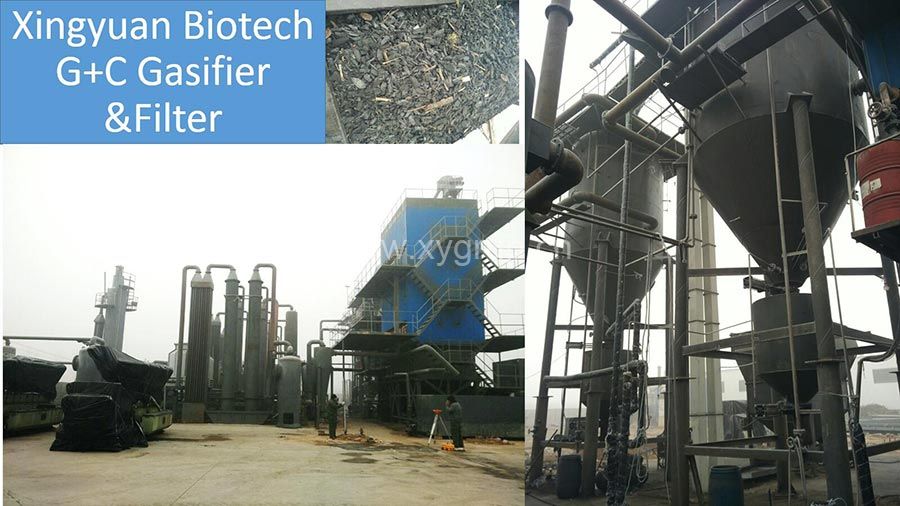

Explanation for Xingyuan Carbonizer & Gasifier

Xingyuan gasifier improved by the Xingyuan carbonizing furnace, which is already run in Xingyuan factory more than 12years. The purpose of such gasifiers to comprehensive utilization the smoke(wood syngas) during the carbonizing process, but in the same time ,also take care of the charcoal output for Xingyuan next procedure activated carbon production . So it’s not only a gasifier for electricity, it’s also a carbonizing machine. That is why we call our Gasifier Xingyuan Carbonizer & Gasifier.


Biomass Gasifier

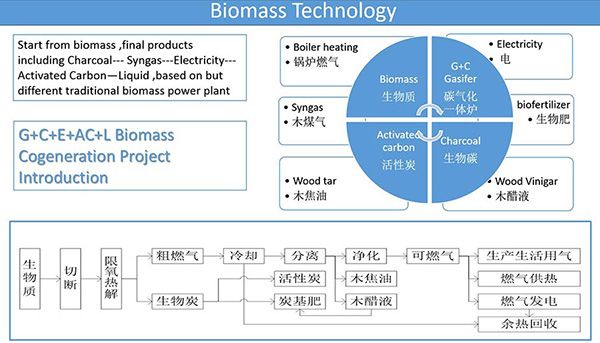

Multi-function & production Gasification System Design.



Program Final Products Introduction

Xingyuan gasification system products including: G+C+E+L ,

G---gas, wood gas after purification can used for the gas generator or as fuel for the boiler

C---charcoal, hard charcoal from wood and shell can directly use for activated carbon, soft charcoal can used for the mosquito coir or SHISHA charcoal

E---electricity from 200-nM KW, as design

L---- liquid , wood tar oil and wood vinegar , wood tar oil can used to make Biodiesel ,wood vinegar can used as preservatives and fertilizer for leaves plant.


Biomass Gasifier

Biomass Gasifier

Xingyuan Gasification and Carbonizing Systems Data

ITEMTesting dataWood basedRemark
Item No.XY-QHL2000
Rated raw material consumption400KG/H9.6MT/DAY
Rated gas creat QTY450-550 m³/h
output Wood Gas temperature490-520℃
Gas creat change rate1.2-1.4 m³/kg
Gas Calorific value and content 1300-1600Kcal/m³ Gas content:CH4  10%  CO 16%H2 8.8%
Bio-charcoal output rate80-90KG/HMoisture 20%



Carbonizing rate18-21%Based on Ideal wood block
Power generation efficiencyGenerator 250KW
Activated carbonActivated carbonBased on charcoal moisture 15%
QualityMB Value 12mlChina standard
Change rate26-27%



What we can do by Xingyuan carbonizer & Gasifier?

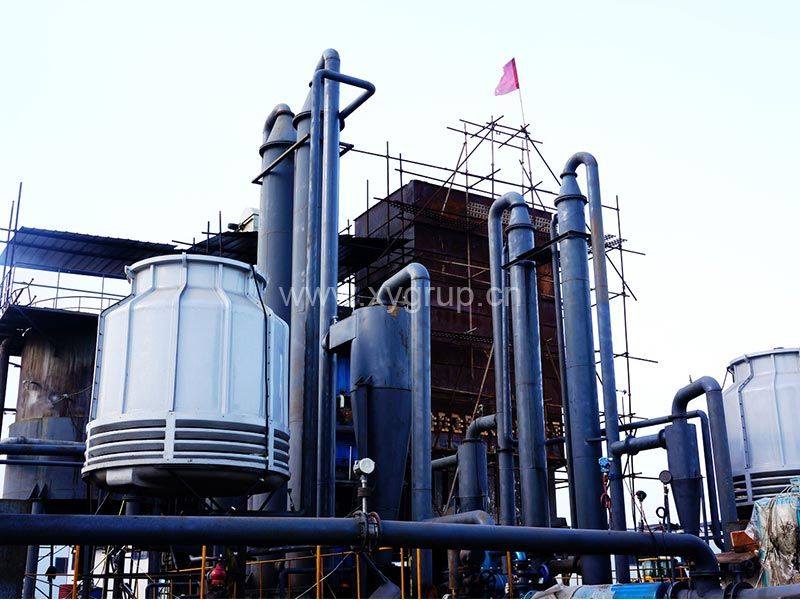

Xingyuan already have an full comprehensive utilization power plant, as bellow:

Biomass Gasifier

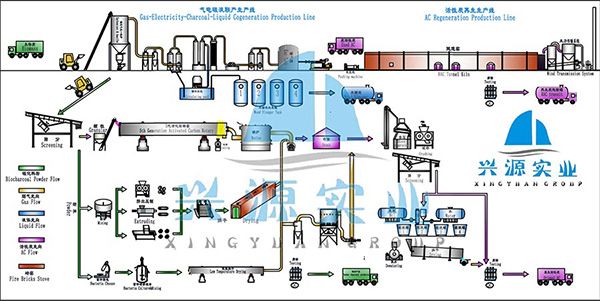

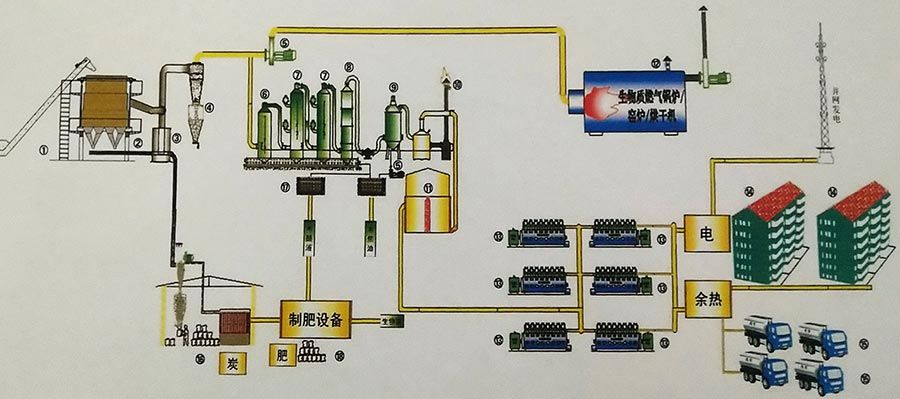

            Xingyuan Bio-power Plant Flow chat


We can supply the right solution for you:


Solution-1: Bio-power Plant

This is a type of waste biomass treatment and multi-products project. This factory will focus on biomass utilization only. Use Xingyuan gasification technology, final main products will be charcoal +electricity+ wood vinegar.


Solution-1-2: Bio-Power + Steam Plant

This is the solution-1 upgraded version, change the gas genset into boiler system. gasification+ boiler system ,final products will be charcoal+wood vinegar +steam.


Solustion-2-1: Carbonizing Factory

This is a type of waste biomass treatment project. factory focus on charcoal making, main products will be various of Charcoal such as coconut shell charcoal, palm charcoal, bamboo charcoal, wood charcoal Olive charcoal, peach/apricot charcoal, hawthorn charcoal, etc. different raw material with different furnace.



Solustion-2-2: Carbonizing & Steam Factory / Carbonizing & Drying Factory

This is the solution-2 upgraded version, during the carbonizing procedure, collect the waste gas energy and used into boiler system or directly use the hot air for drying, can extra steam, main products is charcoal and steam or make a palm or coconut fiber drying production line.


Solution-3: Activated Carbon Plant

Based on charcoal raw material, like wood charcoal or shell charcoal or even carbonized coal, to produce different type of activated carbon with PAC (Powder Activated Carbon), GAC (Granular Activated Carbon), Extruded Pellets Activated carbon. A completely activation and AC treatment Line.


Solution-4: Carbonizing + Activation Factory

Together the solution-2 and solution-3, that's a traditional activated carbon factory, main products will be charcoal+activated carbon+extra steam.


Solution-5: Bio-power Plant + Activated Carbon Factory

Together the solution-1 and solution-3, that's a new technology biomass comprehensive utilization program. Final main products is charcoal,activated carbon, electricity, wood vinegar.


Solution-6: Activated Carbon Reactivation Factory

Waste activated carbon after regeneration can be reactivated, buy waste activated carbon from sugar factory, MSG factory or other industry , then regenerate in the kiln/furnace.


Solution-7-1:Activated Carbon + Reactivation Factory

Soluiton-7-2 : Carbonizing + Activated Carbon + Reactivation Factory



Biomass comprehensive utilization one-stop solution


Main Products Solution:

Bio-power Plant+ Activated Carbon + Reactivation Factory


By Products Solution:

Charcoal Powder can used for BBQ charcoal briquette, BBQ charcoal ball, Mosquito coil, Bio-fertilizer, Shisha Charcoal etc.

Activated carbon powder can used for Water treatment, Bio-fertilizer, activated carbon cubic, activated carbon plate etc.

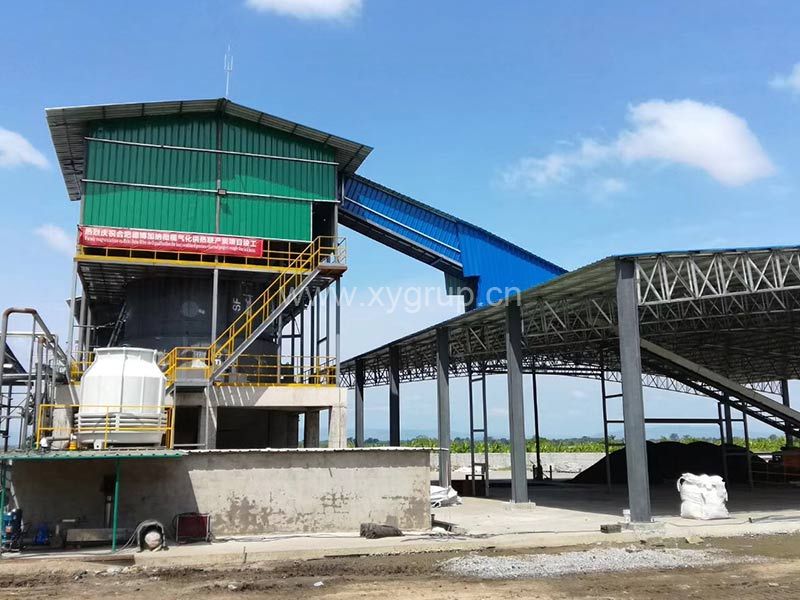

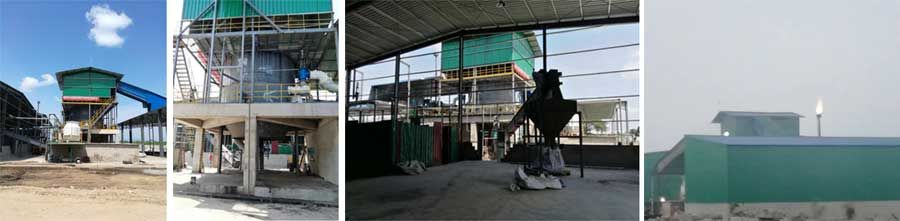

Biomass power plant in Africa

Biomass Gasifier
