  • Coconut Shell Crusher
  • Coconut Shell Crushing Machine
  • Coconut Shell Crushing
  • Granular Coconut Shell

Coconut Shell Crushing Machine

Share

Xingyuan Coconut Shell Crushing System

---2MT/hour crushing speed
---Fiber clean screen

---1-6cm crushing size
---Carbonizing or Activation Pre-treat system

Wood Carbonizing Furnace

  • Product Description

Xingyuan Coconut Shell Crushing System

---2MT/hour crushing speed
---Fiber clean screen

---1-6cm crushing size
---Carbonizing or Activation Pre-treat system


Coconut Shell Crushing Machine


---Xingyuan Biomass Equipment Brand---

Wood Carbonizing Furnace


Coconut shell is the strongest part covered in coconut fruit. Coconut shell is located in between the coconut flesh and coconut husk. This shell is naturally created to protect the inner part of coconut. Coconut shells are also used to made charcoal which is use as fuel and this coconut charcoals are far better than other charcoals. Coconut shell charcoal is widely used to produce active carbon. Normally active carbon is known as the charcoal which has treated with oxygen's. Active carbon is use widely for removing impurities. This coconut shell charcoals are widely used in purification industry and other industries which active carbon are used.


Traditional charcoal making from coconut shell is by Barrels of gasoline, in that way, the carbonizing speed very low, and daily capacity is very small. now Xingyuan with new technology for continuous carbonizing furnace.

Coconut Shell Crushing Machine

Coconut shell carbonizing furnace by Xingyuan Industry



Coconut Shell Crushing Machine

Now if want to make big capacity coconut shell charcoal with high speed and big quantity, need to crush the coconut shell to granular size, this is incase during the carbonizing process, block happen.


So crushing is the first stop to start a carbonizing furnace.


Based on more than 10 years practice and experience , Xingyuan designed this coconut shell crusher.


Xingyuan Knife Type coconut shell crusher is the most common kind of crushing equipment, crushing ratio (typically 10-25, higher up to 50), high production capacity, product uniformly, with less powder, unit product low energy consumption, simple structure, light equipment quality, operation easy maintenance, etc.


Coconut Shell Crushing Machine

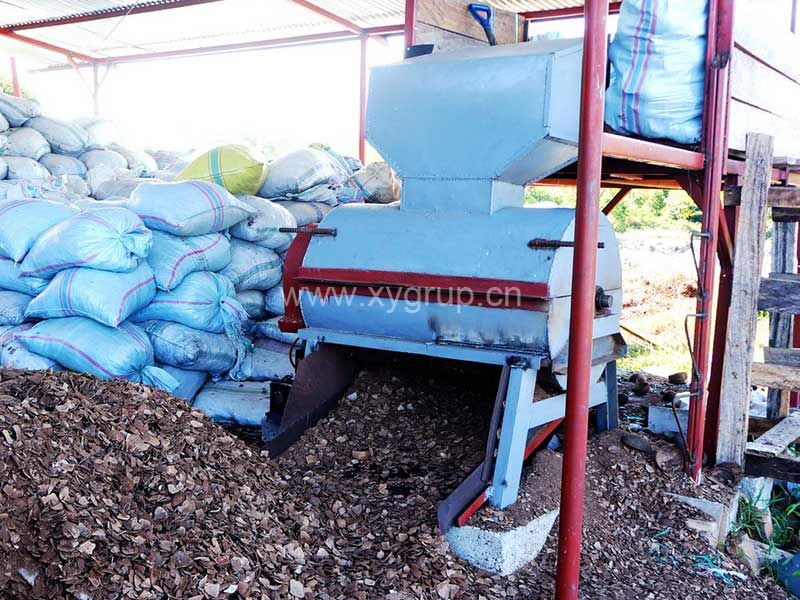

Xingyuan coconut shell crushing machine


Fit with this coconut shell crushing system, can get a high speed and big quantity of granular of coconut shells.

Coconut Shell Crushing Machine

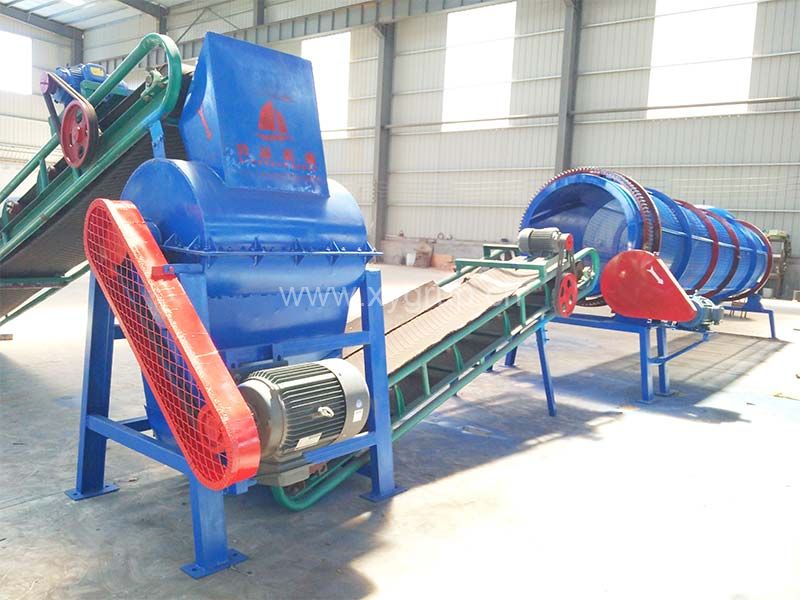

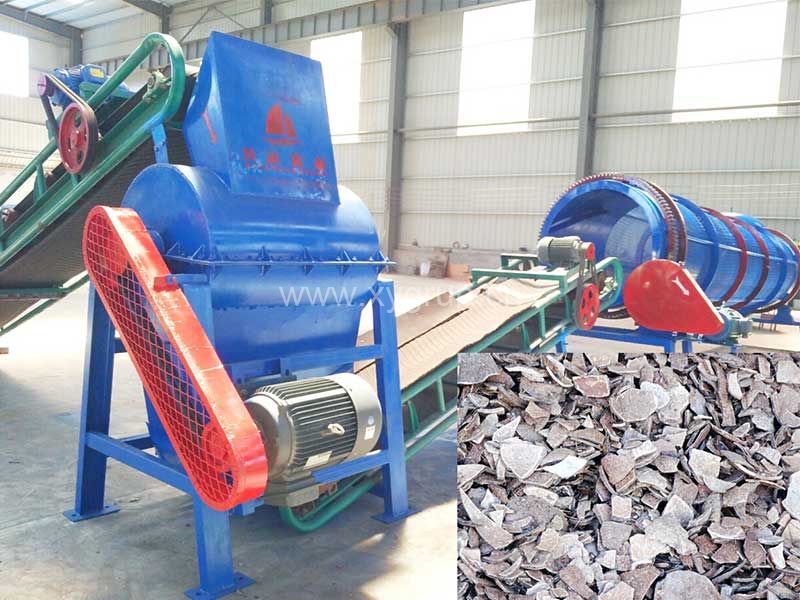

Xingyuan Coconut Shell Crusher



Main specification of Xingyuan Kife Type Coconut Shell crushing system

Equipment ListEquipment component listSpecificationCapacity
Feeding siloWith feeding screw device
2-3MT /Hour
Chain conveyorTransit raw coconut shell to crushing machine4-5meter
CrusherKnife type crushing machine,
with mesh size 2-3cm
2-3MT /hour
Rotary screenerDe-fiber and sand use,according to the condition of coconut shell,5-7mm meshing5meter long
Belt conveyorTake the mesh coconut shell to ton bag
