  • Wood Powder Activated Carbon

Wood Based Activated Carbon


Wood powder activated carbon produced by steam activation of wood. This wood based activated carbon has high porosity and purity.

Xingyuan produce  various of wood based activated carbon.

----different wood powder activated carbon

----sugar refine wood activated carbon

----Pharmaceutical wood activated carbon

----Chemical activated carbon

Shell Based Activated Carbon

  • Product Description
  • Main Features
  • Product Model
  • Application

Xingyuan produce  various of wood based activated carbon.

----different wood powder activated carbon

----sugar refine wood activated carbon

----Pharmaceutical wood activated carbon

----Chemical activated carbon

Wood Based Activated CarbonWood Based Activated Carbon

Powder activated carbon produced by steam activation of wood. This wood based activated carbon has high porosity and purity. Majority is being used in the water and wastewater treatment, decolorization and vapor phase injection systems.

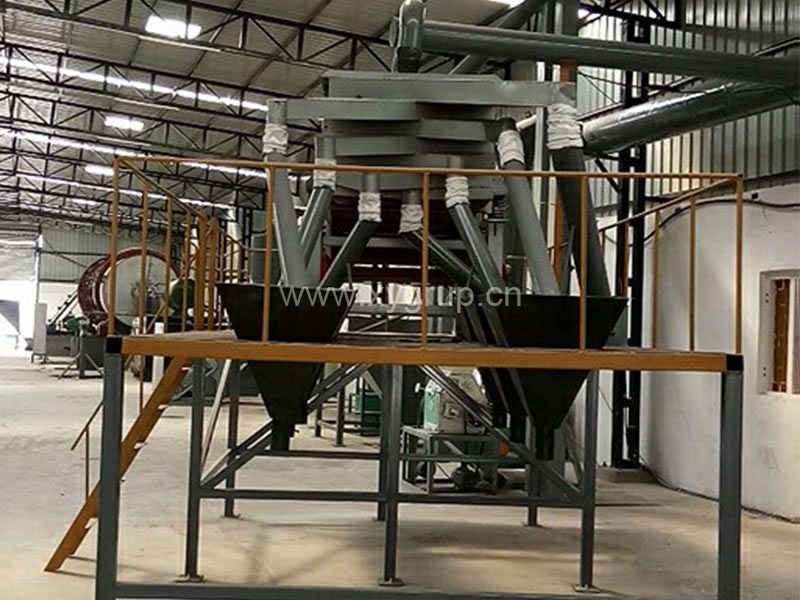

--Xingyuan Activated Carbon Factory Equipment

From 1990, Charcoal as Xingyuan Group first business, now already almost 30 years history, from 1997, Xingyuan begin to produce activated carbon as development for charcoal, now Xingyuan have carbonizing furnace 4set, Activation Rotary Kiln 6 set, and Upright Kiln 3 set, factory take land more than 70000square meter, yearly capacity for activated carbon more than 6000tons, become the first top three in North China carbon active enterprise.
Beginning from 2008, Xingyuan begin import coconut shell charcoal raw material from Indonesia, Philippine, Vietnam etc. south east countries, import wood charcoal from South Africa countries, keep the good relationship with suppliers till to now.

Based on the years of technology and manufacturing experience, Xingyuan activated carbon export to Japan, S.Korea and other countries, get more focus by clients and good reputation.

Wood Based Activated CarbonWood Based Activated Carbon
Activated carbon Rotary Kiln
Wood Based Activated CarbonWood Based Activated Carbon
Activated carbon upright kiln
Wood Based Activated CarbonWood Based Activated Carbon
Activated carbon Rake furnace / Harrow Furnace
Wood Based Activated CarbonWood Based Activated Carbon
Activated carbon Slep Kiln  Activated carbon Srep Kiln

It produces different performance characteristics in industrial applications typically catered to with coal or coconut products. Normally it's powder type of activated carbon.

Wood base activated carbon has a high surface area characterized by both mesopores and micropores and has excellent decolorizing properties owing to its signature porosimetry.

· Relatively low density

· Renewable source of raw material

Products are available in the following mesh sizes above 200mesh size, or <0.075mm size.

Powder Wood Based Carbon
Product Unit DescriptionProduct Range Available
Mesh Size (US Sieve)Passing 100 Mesh (99%)
Passing 200 Mesh (95%)
Passing 300 Mesh (90%)
Surface Area (m2/g) Minimum1000
Iodine (mg/g) Minimum1000
Methylene Blue (ml) Minimum180
Moisture (%)10
Fe (%) Maximum0.07 - 0.1
CI (%) Maximum0.1

Different type of Activated Carbon By Xingyuan Industry

1Wood Based Activated Carbon
Apricot activated carbon for gold mining use
2Wood Based Activated Carbon
Gold mine activated carbon by apricot based
3Wood Based Activated Carbon
Coconut activated carbon  coconut activated charcoal
4Wood Based Activated Carbon
Water treatment activated carbon
5Wood Based Activated Carbon
Drinking water activated carbon /Activated carbon for water purification
6Wood Based Activated Carbon
Water purify activated carbon activated carbon for water
7Wood Based Activated Carbon
Carbon activated Activated carbon for air purification
8Wood Based Activated Carbon
Granular activated carbon mesh size activated carbon GAC
9Wood Based Activated Carbon
Activated carbon for filter Activated carbon granular
10Wood Based Activated Carbon
Powder activated carbon activated carbon powder
11Wood Based Activated Carbon
Sugar use activated carbon PAC
12Wood Based Activated Carbon
Extruded activated carbon Pellets activated carbon
13Wood Based Activated Carbon
Activated carbon pellets Coal based pellets activated carbon
14Wood Based Activated Carbon
Coal activated carbon Coal based activated carbon
15Wood Based Activated Carbon
Honeycomb activated carbon Gas honeycomb activated carbon

From the activated carbon different application, Xingyuan separate the activated carbon into:

· Water treatment

· Air & Gas treatment

· Chemicals & Pharmaceutical

· Food & Beverages

· Gold Recovery

· Soil Remediation

· Cosmetics

GradeStandard particle size (mesh)CharacteristicsTypical application
For water purification100 or less1: Wood-based powdered activated carbon,
which has the characteristics of activated
carbon according to application
A: Removal of musty smells, humic substances, COD
compounds, THM, and synthetic detergents in tap
B: COD removal and decolorization of waste water
For general decolorization purification100 or less
1: Coconut shell powdered activated carbon,
which has the characteristics of activated
carbon according to application
A: Decolorization and purification in food industry
B: Decolorization and purification of chemicals and
intermediates for industrial use
C: Decolorization of solvents for cleaning
For dioxin removal100 or less
1: Selected carbonaceous material is used and
manufactured by the steam activation method,
so it is good for safe ignition.
A: Removal of dioxin

Water Treatment

Wood Based Activated Carbon

Water. One of the world's most precious resources for drinking, irrigation or industrial processes. The supply of clean, fresh water continues to be more and more constrained as populations rise and water demands grow on our planet. Activated carbon is one of the best technologies available for improving water quality.

Water is a vital global resource, and activated carbon is widely used in many processes and industries where water needs to be purified.

Perhaps the best known application for activated carbon is the purification of drinking water. Indeed, in most developed countries, almost all municipal drinking water is filtered through activated carbon, as part of a multi-step purification process.

Applications for activated carbon in water purification include the following:

– Municipal drinking water treatment

– Point-of-use (POU) and point-of-entry (POE) filters

– Industrial process water, e.g. breweries, food, power plants, chemicals production,…

– Groundwater and soil remediation

– Industrial wastewater

– Municipal wastewater

– Landfill leachate

– Aquarium filters

– Swimming pool filtration

Depending on the exact application, activated carbons remove a wide range of unwanted chemicals and pollutants, including:

– Colour, taste and odour compounds in drinking water, such as Geosmin and MIB (2–Methylisoborneol)

– Dechlorination in POU filters, process water applications, swimming pools and aquaria filters

– Trace contaminants such as pharmaceuticals, herbicides, pesticides and other persistent organic pollutants (POPs) from municipal water streams.

– Various organic pollutants, such as the BTEX group, PFOS/PFOA and hydrocarbons, from groundwater in remediation projects, or from leachates.

Xingyuan supplies a wide range of product and services for the treatment of water. Powdered activated carbons (PAC) are used in batch treatment processes, whereas granular (GAC) grades are generally used in fixed filter beds, with the water passing through the filtration medium.

Air & Gas Treatment

Wood Based Activated Carbon

The purity of air on our planet is of vital importance to us all. Whether you are working to meet emission regulations to protect the environment and/or human health, reduce nuisance odors, or produce ultrapure gas streams, Xingyuan provides the exact carbon to address your need.

Activated carbons are used extensively in the gas phase for the removal of a variety of unwanted contaminants, such as volatile organic compounds (VOCs) and odour-causing molecules.  In China, the Government’s 2019 Clean Air Strategy will focus a great deal of attention on this issue, and Xingyuan Activated Carbons stands ready to assist in the supply of air purification solutions.

VOCs, typically from industrial processes such as chemical/pharmaceutical production, petrochemical tank venting, spray booths and soil remediation projects, include compounds such as acetone, benzene, styrene, toluene and xylene.

Odour control systems make use of impregnated activated carbons to remove compounds such as hydrogen sulfide (H2S), mercaptans, DMS and ammonia (NH3).

Industrial gas streams may require the removal of trace levels of various contaminants such as VOCs or, in the case of natural gas, heavy metals like mercury and cadmium.

In the oil and gas industry, specialised activated carbons are used as catalyst supports for mercaptan oxidation in the so-called Merox process. Mercaptans are removed from hydrocarbon streams by converting them to liquid disulfides.

For personal protection applications, such as respirators and escape hoods, carbons are used to remove a range of harmful or poisonous gaseous compounds.

Activated carbons can also be used in cigarette filters for the removal of some of the smoke's constituents, in order to improve the taste experience.

Chemicals & Pharmaceutical

Wood Based Activated Carbon

Purity is essential in the production of pharmaceutical products. This applies to all stages, from raw materials to intermediates to final product. The unique properties of specific activated carbons from Xingyuan provide superior removal of colour compounds, odour compounds, proteins and other contaminants that could be present in the raw materials, or that form during production.

Activated carbons are used extensively for purification purposes in the production of a wide range of industrial chemicals and pharmaceutical compounds. Typical applications include the purification of amino acids, biodiesel, glycerine, mineral acids and active pharmaceutical ingredients (APIs).Solvent recovery is also an important application for activated carbon, either in the chemical/petrochemical industry or in printing and ink/dye production facilities.

Other uses for activated carbons in the petrochemical industry include amine and glycol purification, removing contaminants from gas scrubber systems.

Activated carbons are used either in a powder (PAC) form, and dosed in a batch process, or used in a granular form (GAC) in a fixed bed adsorber. As well as being useful for the main manufacturing process, carbons may also be used for the recovery of off-spec materials, or for the improvement of product purity levels to allow the sale of a higher-grade end-product.

Food & Beverages

Wood Based Activated Carbon

Beverage makers rely on activated carbon to remove bad tastes and odors and help ensure the long-term stability of their products. We manufacture Activated Carbon products that are used to improve the quality of beverages ranging from water to fruit juices to distilled liquor so that beverages look good, smell good and taste good.

Activated carbons have long been used in the food and beverage industries for the purification of liquid and gas phase process streams. Their main purpose is the removal of colour, taste and odour, as well as any other organic trace contaminants.

Typical examples include the following:

– Sweetener purification – cane sugar, glucose and syrups.

– Food-grade acids, e.g. citric acid, produced via a fermentation process.

– Purification of ethanol for use in alcoholic beverages.

– Removal of tannins and other impurities in the wine growing industry.

– Purification of carbon dioxide (CO2) gas produced in breweries, prior to its re-use in food-grade applications.

– A highly purified form of PAC is used as the black food colourant E153

Gold Recovery

Wood Based Activated Carbon

Highly activated carbon is used in the dissolved gold recovery process, either by introducing it directly into the CIL (carbon-in-leach) tanks or into separate CIP (carbon-in-pulp) tanks after leaching.The activated carbon adsorbs the dissolved gold from the leach slurry thereby concentrating it onto a smaller mass of solids. The carbon is then separated from the slurry by screening and subjected to further treatment to recover the adsorbed gold.

Xingyuan Activated Carbons has extensive operational and commercial experience in the supply of specialised grades of activated carbons into the precious metal recovery industry.

Activated carbons are used to recover gold from cyanide solutions, which are percolated through gold-containing ores.

Three main technologies exist for recovering gold from cyanide leachate solution:

– Carbon-in-Pulp (CIP)

– Carbon-in-Leach (CIL), includes 'Heap Leach'

– Carbon-in-Column (CIL)

Xingyuan Activated Carbons supplies a range of carbons for the gold mining industry, which independent testing, by leading academic institutions, has shown to offer exceptional performance. Our products are characterised by the following properties:

– High rates of gold loading and elution

– Good resistance to mechanical attrition

– Stringent particle size distribution

– minimal undersized material

– Low platelet concentrations

– Good reactivation performance

Soil Remediation

Wood Based Activated Carbon

Activated carbon is produced when materials with high carbon concentrations, such as coal, wood, peat, or even coconut shell, undergo special treatment processes that expose them to extremely high temperatures without burning them. The result is a porous, highly adsorptive substance that binds easily with organic toxins. When mixed into contaminated soil or sediment, the activated carbon draws dioxin to it and sequesters it.


Wood Based Activated Carbon

Around the world, many different traditional medicine practitioners use activated charcoal powder made from coconut shells to treat soft tissue conditions, such as skin infections. Activated charcoal may have an antibacterial effect by absorbing harmful microbes from wounds. Several are available commercially. Activated charcoal–when used in a face mask–binds to dirt and helps pull it out of your pores, making them less visible (it's the oil and dirt that makes them appear bigger). This leaves your face feeling fresh.
